5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Nama Produk: Badan Lampu Jalan
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Indeks Kalis Air: IP66 IP67
Indeks kalis gempa bumi : IK08 IK09
Suhu Bekerja(℃): -20-60
Warna Permukaan: Kelabu Gelap, Kelabu Muda, Hitam, Disesuaikan dsb
Mengandungi Aksesori : Lampu jalan siap lengkap
Ciri-ciri Produk
- Badan aluminium diperbuat daripada ADC12 aluminium Die-casting, permukaannya dirawat dengan Pengecatan Semburan untuk Mencegah Kakisan dan Ketahanan Warna.
- Reka bentuk sirip heatsink kawasan besar untuk teori pantas yang memihak kepada perolakan antara udara sejuk dan panas, untuk mengekalkan pelesapan haba yang baik bagi lampu dan meningkatkan cahaya sepanjang hayat.
- Kotak pembekal kuasa untuk memastikan lampu lengkap dan bersatu.
- Reka bentuk pengudaraan untuk pencegahan habuk & mengelakkan air bertakung untuk mencapai masa jangka hayat yang ringan.

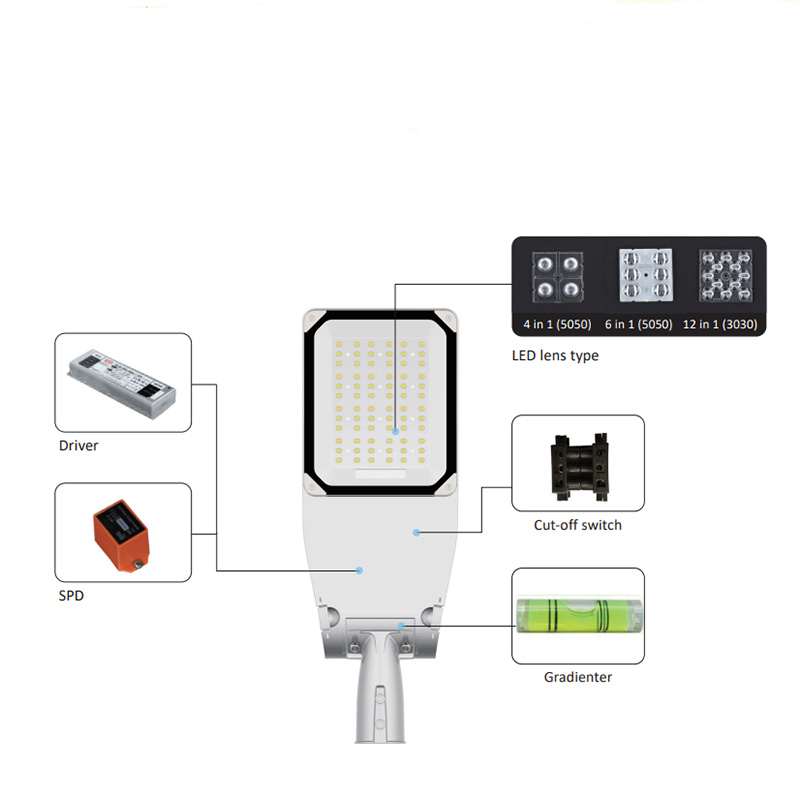

Product Details

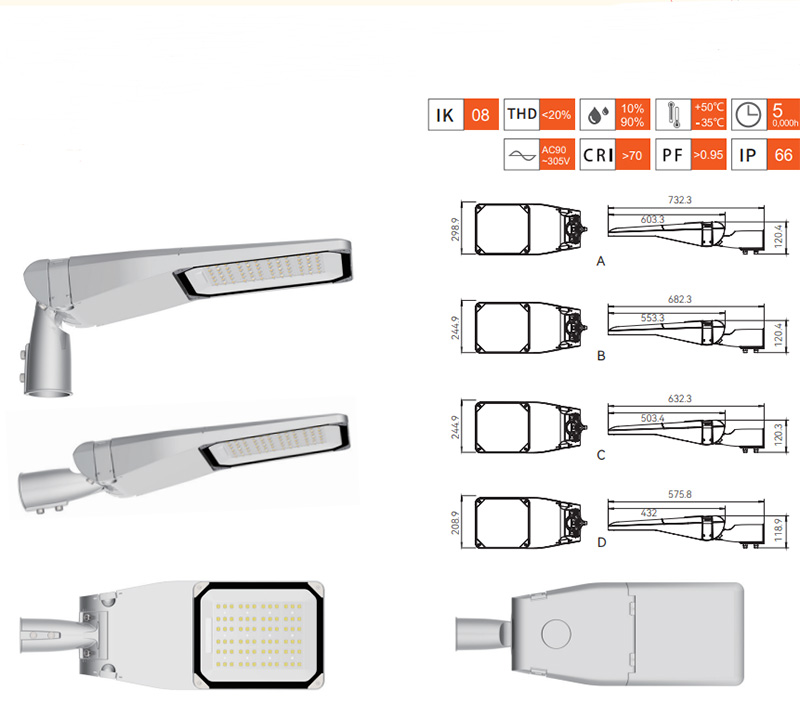

Product Size Chart
Spesifikasi dan Dimensi
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Watt | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Faktor Kuasa | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| Kelas IP | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| bahan | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
ShenZhen EKI Lighting Industrial Co.,Ltd. ialah pengilang Aluminium Die-Casting LED Light Housing Dengan pelbagai reka bentuk dan teknologi kami yang dibangunkan sendiri.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
